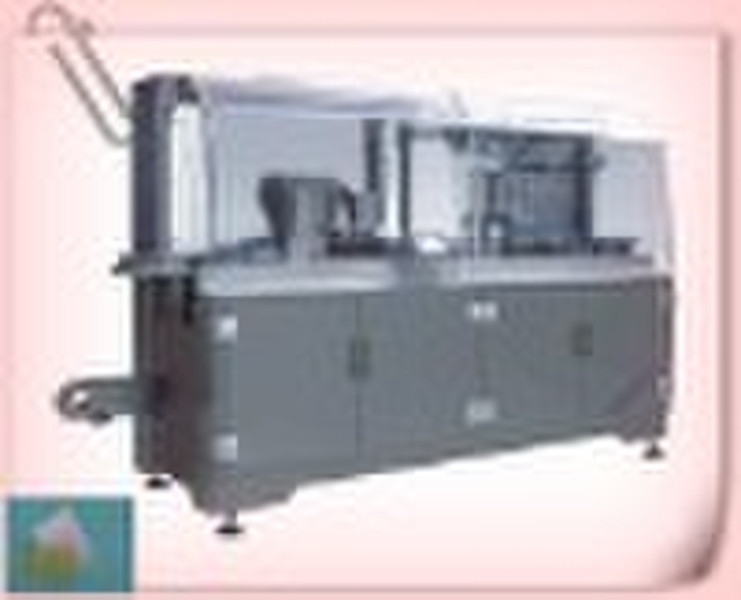

Plate Style ALu-Plastics Blister Packing Machine

Packing Machinery : Plate style Alu-Plastics blister packaging machine Capability and Characteristic: 1.Heating board temperature control detection, overload protection for principal motor,PVC and PTP packaging material level detection. 2.Mechanical friction wheel speed reduction and regulation, which is superior to mechanical constant-ralio speed reducer in speed regulation and driving. 3.Each mould box same splined shaft driving, ensuring driving rigidity and absolute synchrony. 4Innovative and transparent security casters are viewable well, complied with GMP requirements. 5.Adopt modular design, flexible matching, can collocate different feeder, convenient to replace, install and adjust. 6.Adopt PLC control, coder data acquisition, touchscreen operation, words and numeric display, words indication of failure diagnosis, which is easy and reliable to operate and convenient to maintain. Main Function: PVC blister forming, automatic material filling, PTP Al foil pressing and hot-sealing, printing batch number, pressing slitting line, cutting medicine card. Applicable Object: Al-plastics blister packaging for solid articles such as pills, capsules etc, in medical industry, chemical industry, light industry and food industry. Packaging material: Pharmaceutical PVC hard pieces:0.15--0.4×250mm PTP Al foil:0.05--0.17×250mm Dialyzing paper :50--100g/m2×250mm Usaging Requirements: Clean compressed air: Pressure 0.6--0.8Mpa; Air consumption:(Air compressor) ≥0.3m3/min Power consumption: 380V 50 Hz 6 Kw Cooling water of moulds: tap water or recycling water,consumption: 60L/h. Overall Dimensions: L×W×H3500×980×1800 mm Weight: 2400Kg Main Technical Parameters: Item
